Introduction

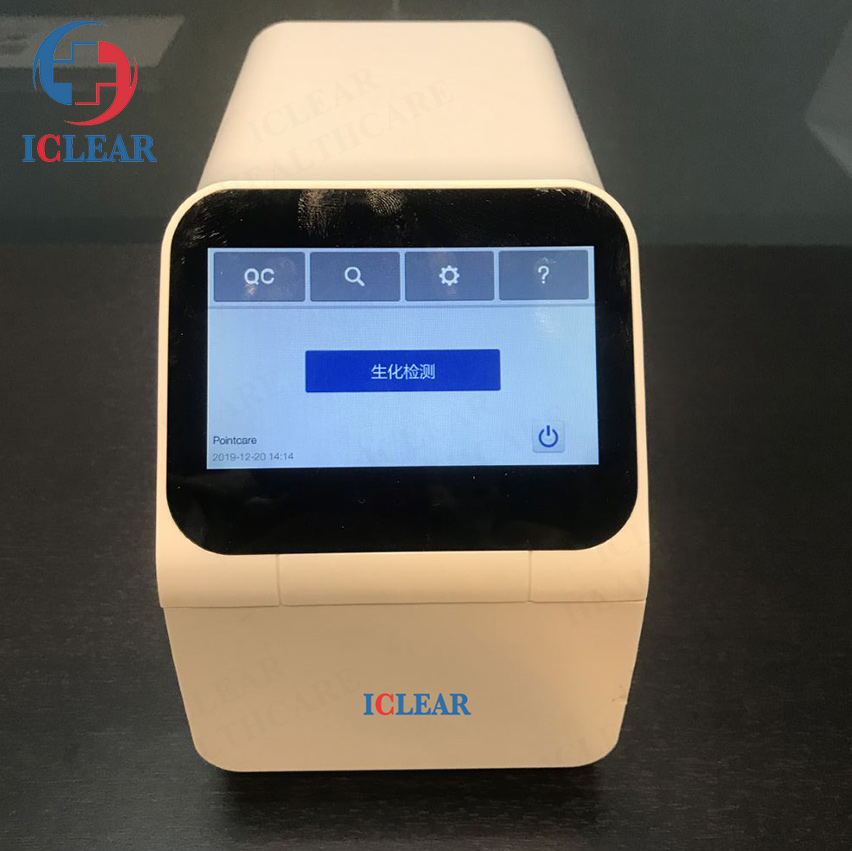

Small in size (2.2Kg) yet big on accuracy, reliability, and reproducibility, the V3 delivers real-time blood chemistry (immunoassay) diagnostic information for patients.
Technical parameters
| Dimensions | |
| Dimensions | 210mm(L)*125mm(W)*175mm(H) |
| Weight | 2.2 kg (4.85 lbs) |
| Samples | |
| Sample Size | 0.1cc (100 µl) |
| Sample Type | Lithium heparin, whole blood, serum or plasma |
| Test Time | 8-12 minutes |
| System | |
| Quality Control Features | Built-in real-time Quality Control (rQC®) system |
| Communication | Bi-directional input/output; |
| Interfaces | WIFI, USB, Bluetooth, LIS/EMR capable |
| Consumables | |
| Parameter | 34 tests in 13 panels |

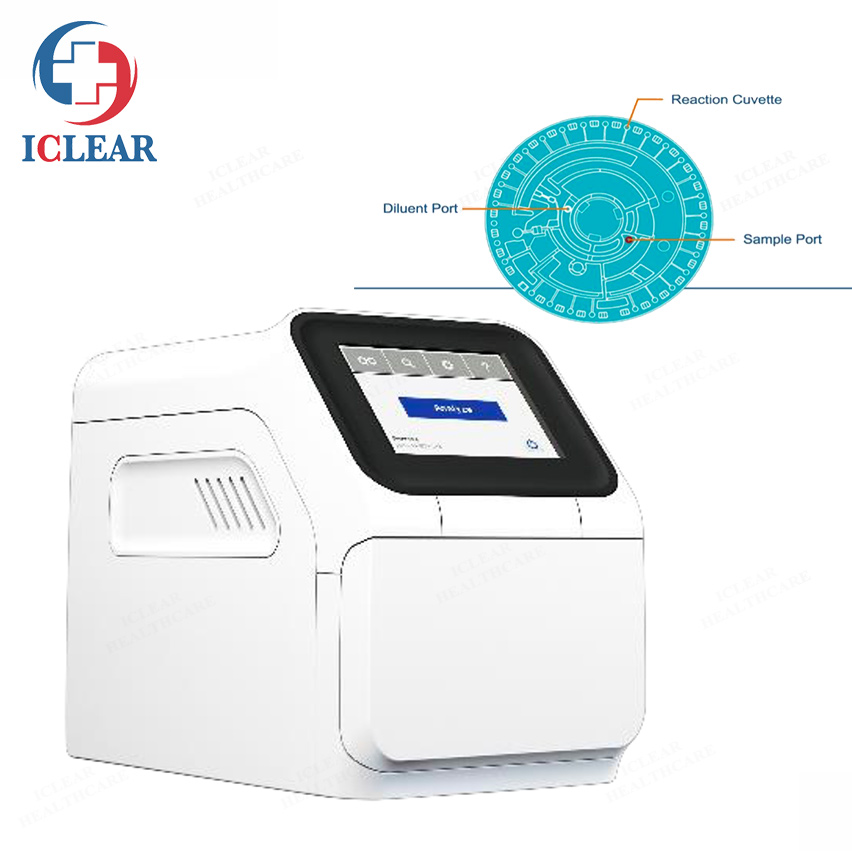

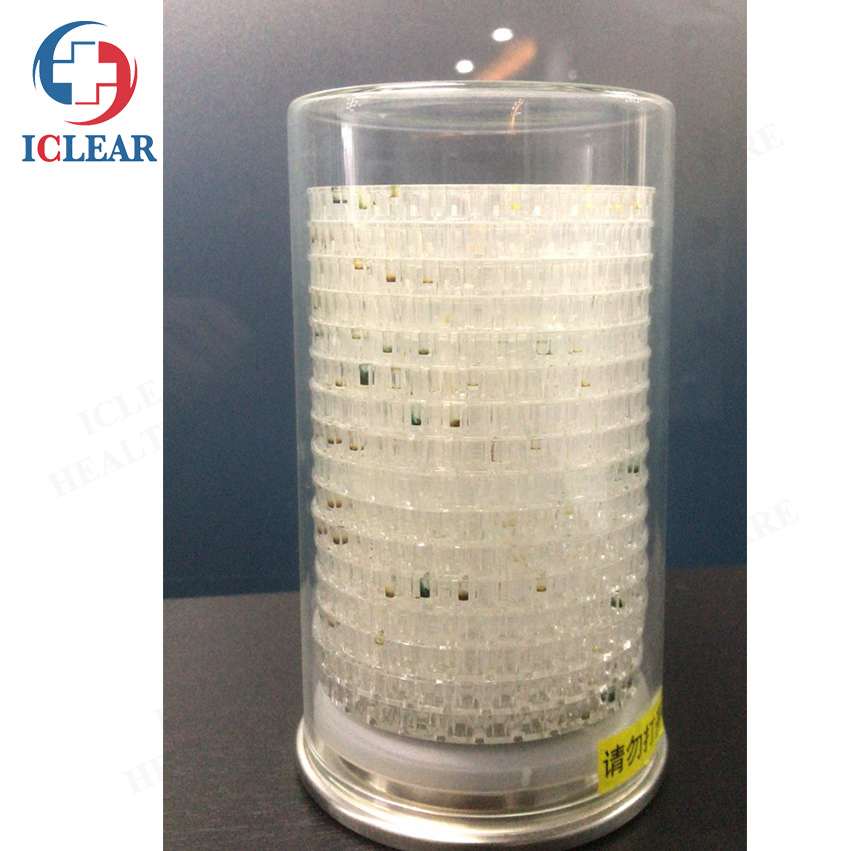

| Consumables | 7.8cm in diameter and 0.68cm thick, single-use, self-contained plastic chemistry reagent discs. Each disc contains all reagents needed to perform a panel of tests on a single sample |
| Environmental Specifications | |
| Ambient temperature | 10~30ºC(50-86 ºF), indoor use |
| Power requirements | 82 VA (Power bank Capable) |
| Main supply voltage | 100-240 volts AC, 50-60 Hz |
| Operating humidity | 40%~85% |
| Reaction Temperature | 37ºC±0.2ºC |
| Measurement Principles | Spectrophotometry, Turbidimetry |
| Data Input Display | 4.3-inch capacitive touchscreen |
| Other Specifications | |
| Mode of Operation | Continuous |
| Memory Capacity | Up to 50,000 patient and quality control results |
