1. 4kwx ray bulb
2. Simple & Light structure
3. Gross weight 35kg
4. Packing size 550*400*360mm
5. Diagnosis in field operation sites, battlefields, stadiums
6. 6-segment LED display
7. Anatomical memories for 24 selection program
8. Double-loop (analog & digital) high precision control mode
9. High precision control in tube voltage & current
10. Self-protection & auto-diagnosis available when malfunction occurs
Fuselage size: 290*260*230mm
Fuselage weight: 18.8kg

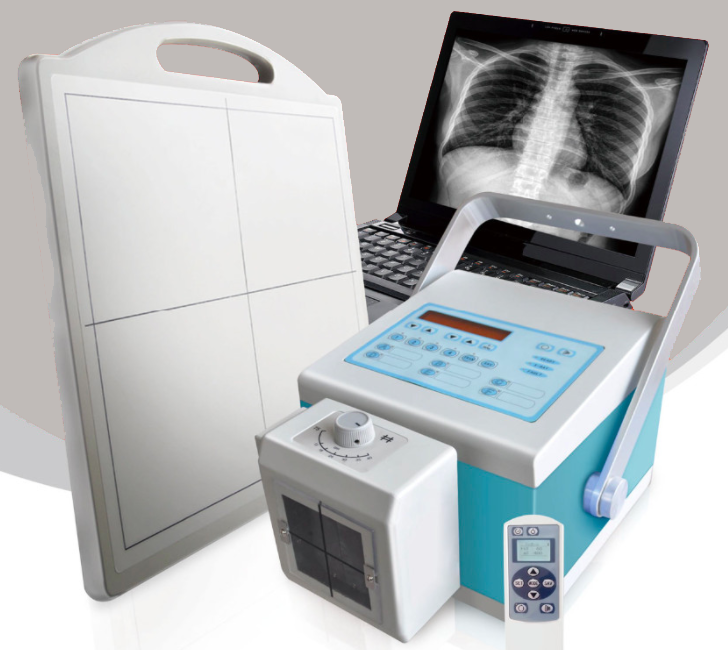

Portable Digital X-ray machine
CHX-DR3
Applicable scope:
4 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in the wild flow places, battlefield, playground, pet clinic, rescue diagnosis etc.
Characteristics:
1. 4kwx ray bulb
2. Simple & Light structure
3. Gross weight 35kg
4. Packing size 550*400*360mm
5. Diagnosis in field operation sites, battlefields, stadiums
6. 6-segment LED display
7. Anatomical memories for 24 selection program
8. Double-loop (analog & digital) high precision control mode
9. High precision control in tube voltage & current
10. Self-protection & auto-diagnosis available when malfunction occurs
Specification:
|
Voltage: AC220V±22V Frequency: 50/60Hz±1Hz Power capacity: ≥5kVA Inner resistance: ≤0.5Ω |
|
|
Maximum output power |
P =110kV×36mA=4kW |
|
Nominal power |
100kV, 40mA, 0.1s, 4kW |
|
Frequency |
≥40kHz |
|
kV adjusting range |
40kV~110kV, continuous adjustment step 1 kV |
|
mA adjusting range |
36mA~70mA |
|
mAs adjusting range |
1mAs-200mAs, shifted adjustment |
|
s adjusting range |
0.04s~3.2s |
|
X-ray tube |
Focus: 0.6/1.5mm; Anode heat capacity: 76kHU |
|
X-ray machine Size |
290×260×230 mm |
|
Weight |
18.8kg |
|
Accessories |
1.Remote control 2.Aluminum box |
1. Introduction
|
Item |
Description |
|
Model |
EVS 4343 |
|
Purpose |
General Radiography |
|
Pixel Pitch |
140 um |
|
Scintillator |
CsI |
|
Image Matrix Size |
3072 × 3072 pixels |
|
Effective Imaging Area (H x V) |
430 x 430 mm |
|
Preview Time |
< 3 sec. |
|
Spatial Resolution Min. |
3.5 line pair/mm |
|
Power Supply |
DC +12V 2 A |
|
Power Consumption |
24 W |
|
Network Interface |
16 bit Digital Output Ethernet (1000BASE-T) |
|
Dimensions mm) |
460 (H) × 460 (V) × 15 (D) |
|
Weight |
4.5 kg |
|
Environmental Requirements |
|
|
Operation |
|
|
Temperature: |
+15 ~ +35℃ |
|
Humidity: |
30 ∼ 85% RH |
|
Atmospheric pressure: |
700 ∼ 1060 hPa |
|
Storage and Transportation(unpacked) |
|
|
Temperature: |
-15 ~ +55℃ |
|
Humidity: |
10 ∼ 90% |
|
Atmospheric pressure: |
500 ∼ 1060 hPa |
