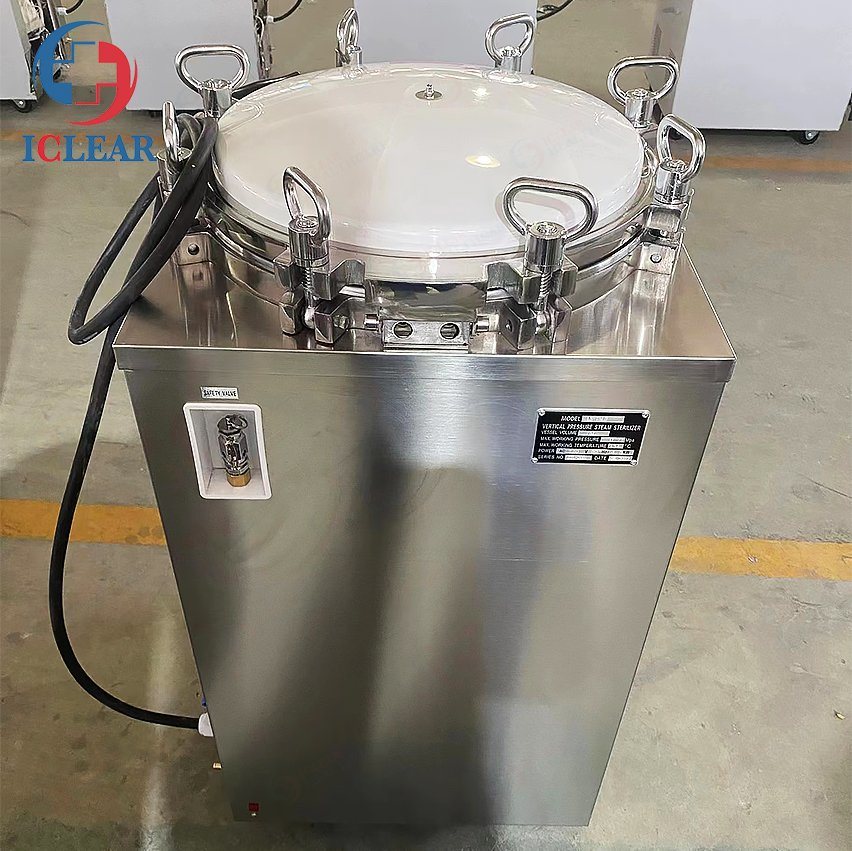

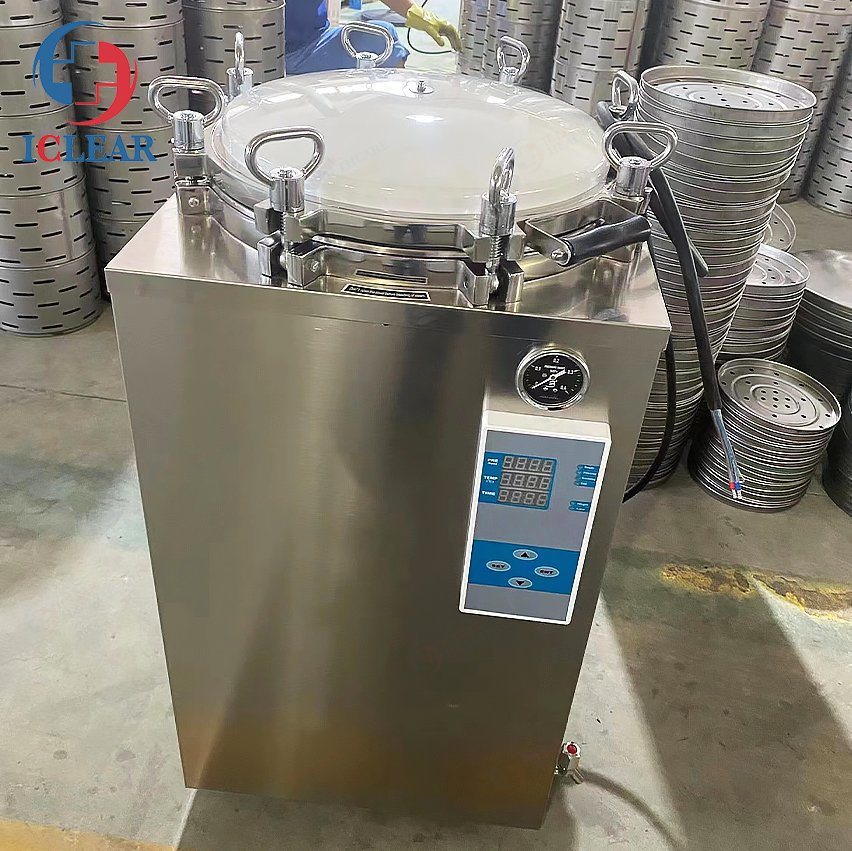

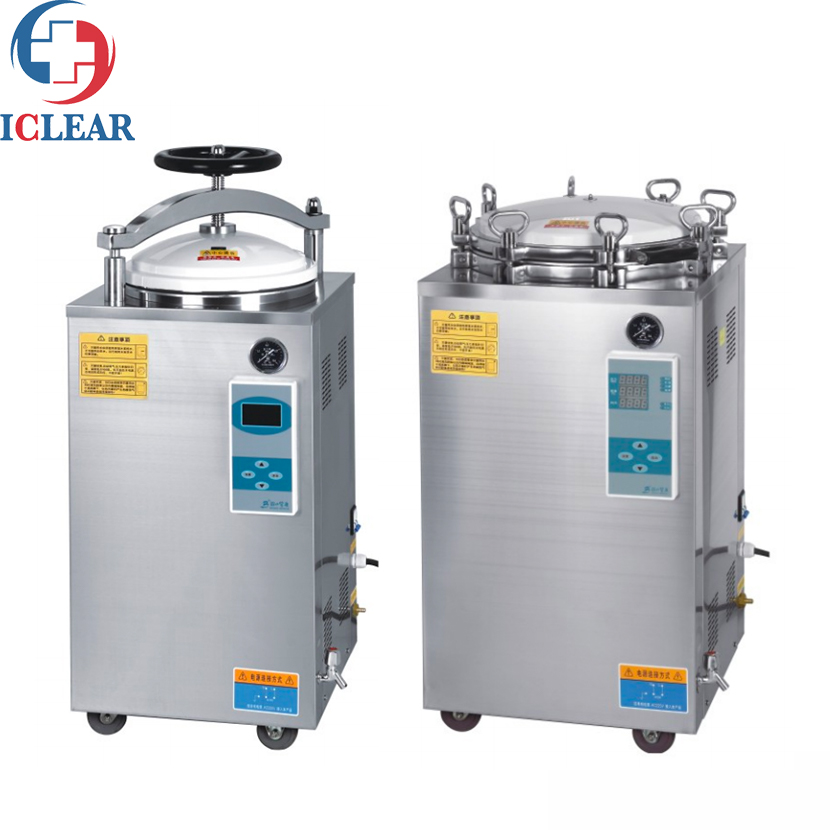

35-150L Digital Automatic Vertical Pressure Steam Sterilizer
CHL-LS Series
Product Description
This vertical sterilizer is a safe, reliable and automatically controlled sterilization equipment, consisting of a heating system, a microcomputer control system and an overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving and durability, and low cost.
Performance and Features
• High quality all stainless steel material
• Digital display working status, touch key
• Automatically discharge cold air, automatically discharge steam after sterilization
• End of sterilization buzzer to remind automatic shutdown
• Simple operation, safe and reliable
• Comes with stainless steel inner tub or double-layer mesh basket

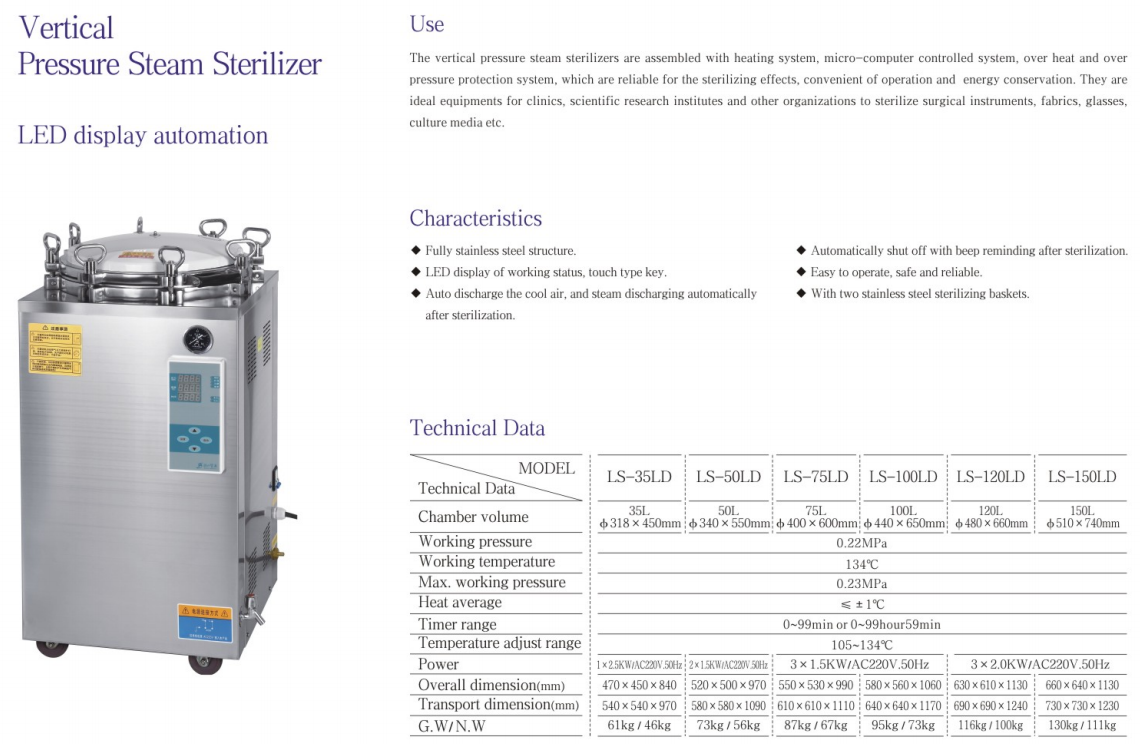

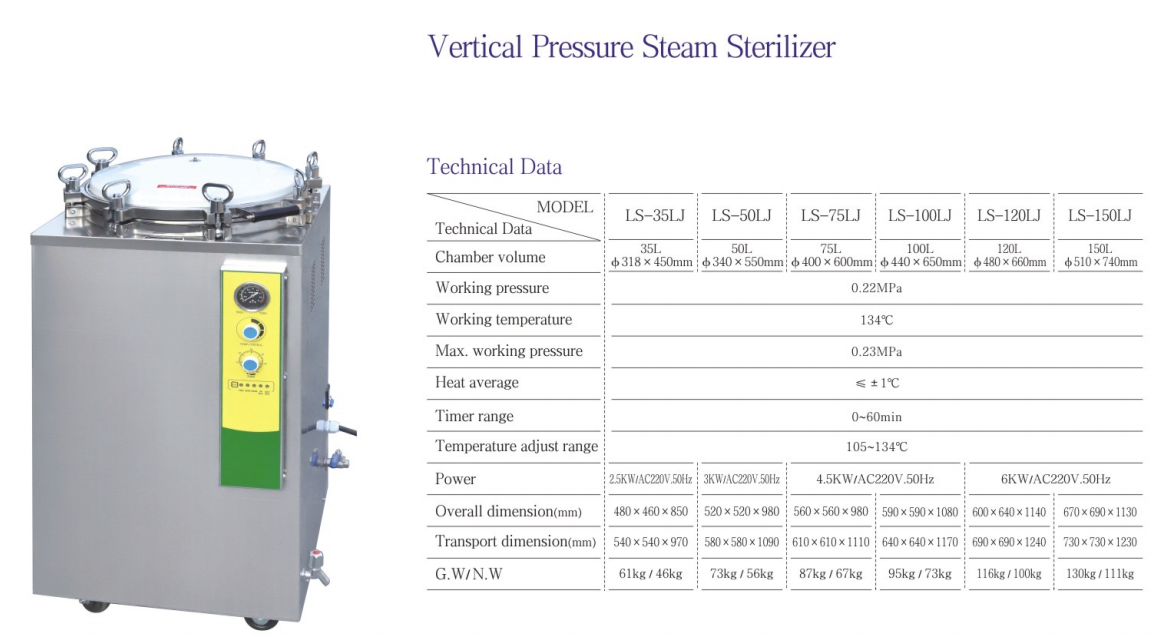

Technical Parameter
Model | CHL-LS35LD | CHL-LS50LD | CHL-LS75LD | CHL-LS100LD | CHL-LS120LD | CHL-LS150LD | |
Technical parameter | |||||||
Effective volume of sterilization chamber |
35L φ318×450mm |
50L φ340×550mm |
75L φ400×600mm |
100L 650mm |
120L 660mm |
150L φ510×740mm |
|
Fixed work stress | 0.22Mpa | ||||||
Rated operating temperature | 134℃ | ||||||
Maximum working pressure | 0.23Mpa | ||||||
Thermal uniformity | ≤±1℃ | ||||||
Timing selection range | 0-99min/0-99hour59min | ||||||
Temperature selection range | 105-134℃ | ||||||
Power/Supply Voltage | 1 X 2.5KW/AC220V 50HZ | 2 X 1.5KW/AC220V 50HZ | 3 X 1.5KW/AC220V 50HZ | 3 X 2.0KW/AC220V 50HZ | |||
Dimensions (mm) | 470×450×840 | 520×500×970 |
550×530 ×990 |
580×560 ×1060 |
630×610 ×1130 |
660×640 ×1130 |
|
Shipping volume (mm) | 540×540×970 | 580×580×1090 |
610×610 ×1110 |
640×640 ×1170 |
690×690 ×1240 |
730×730 ×1230 |
|
Gross/Net | 61Kg/46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg |
1165Kg/ 100Kg |
130Kg/ 111Kg |
