PRODUCT DETAILS

Universal compatible HD Integrated Imaging Endoscope System

Band nameICLEAR
Model No.CHI-IIE02
CertificateISO CE
Add to Favorites

Quick Details

1  Multi-functional Integration(Imaging / Camera/ Light Source/ Record)
2  Universal compatible with optical lens
3  Small volume / Light weight / Portable
4  Support endoscopic mobile application
5  Various display / Various application

Packaging & Delivery

12kg

Product Description

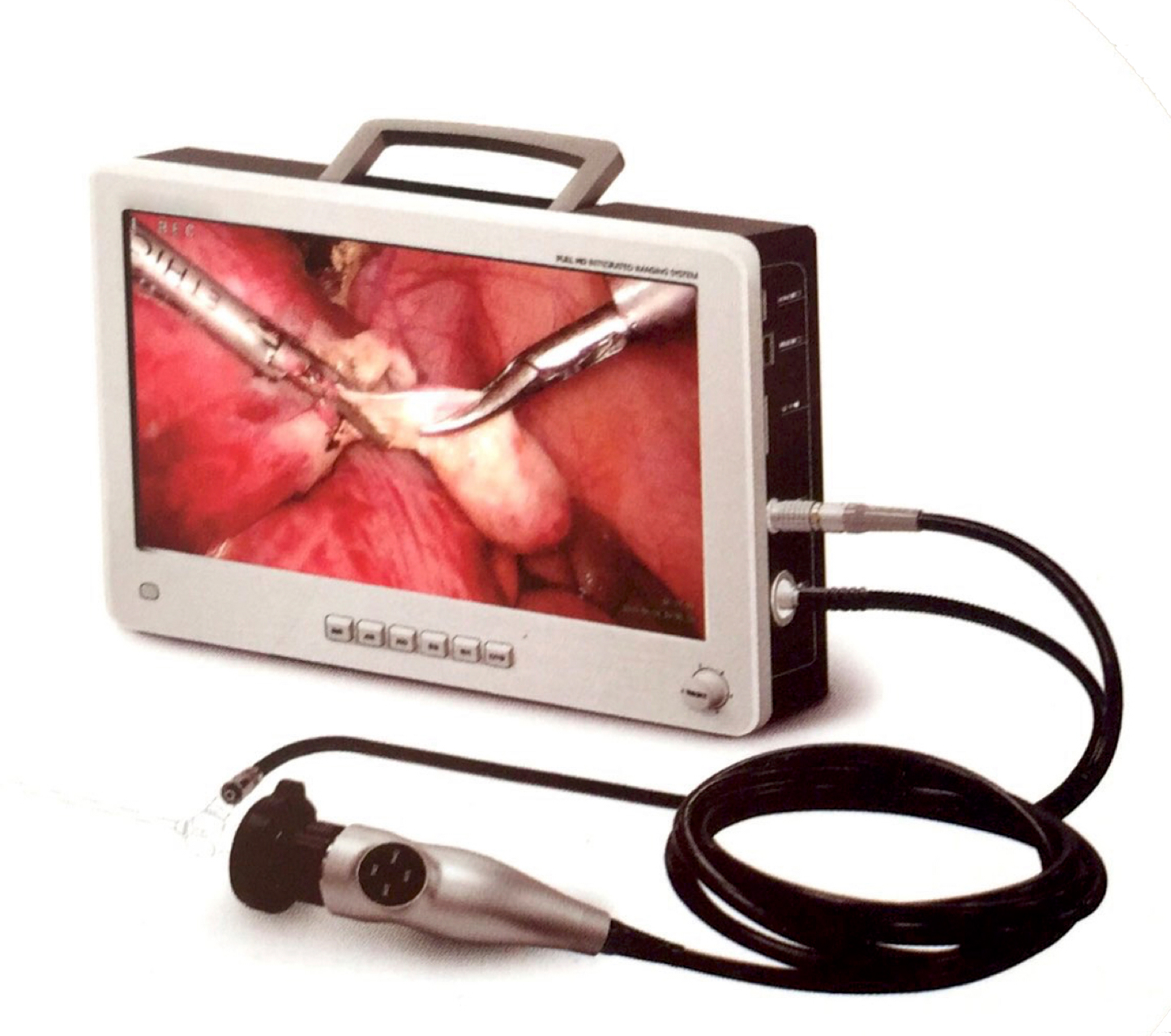

Universal compatible HD Integrated Imaging Endoscope System

CHI-IIE02

Key Characteristics:

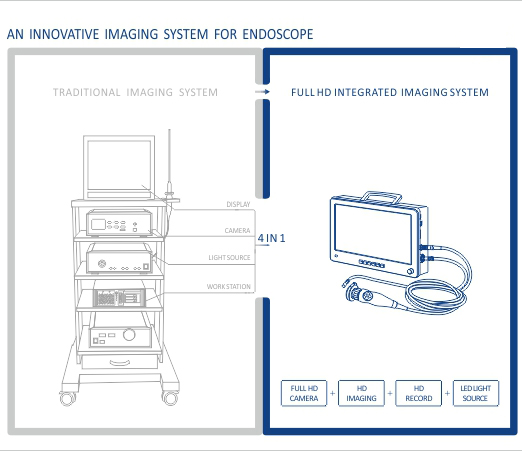

1  Multi-functional Integration(Imaging / Camera/ Light Source/ Record)
2  Universal compatible with optical lens
3  Small volume / Light weight / Portable
4  Support endoscopic mobile application
5  Various display / Various application

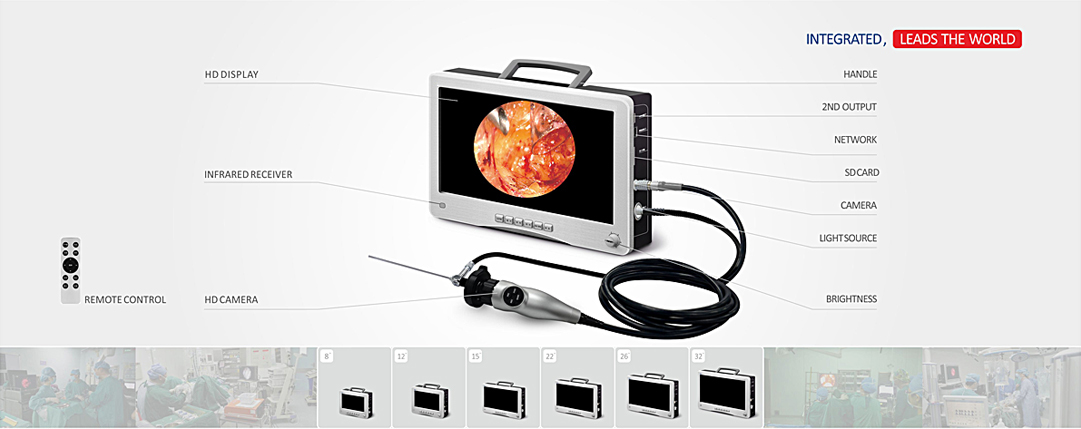

Key Function:
1  HD imaging / HD camera / Powerful LED light source
2  HD recording / Storage/ Playback / Snap
3  Synchronous secondary output
4  Real-time network output / Rebroadcast
5  Network real-time browsing

Main Parameter(Up to date)
HD Monitor: HD Camera:
1  Proportion:   16 : 9 1  Sensor          1/2”Full HD CMOS
2  Specifications/Size:   12” /  15” /  22” /  26”/  32”   2  White            Manual / Auto
  3  RGB/SOPT      Auto

Video Output: LED Light Source:
1  Output Mode      HDMI , Synchronous    1  Power               ≥30W
2  Extended Mode    Extensible 2  Color Temp.      5000-6000K
  3  Illuminance        ≥700,000Lux
  4  CRI                   93

HD Record: System Control:
1  Resolution            H.264,1920×1080 P60 1  Control method    Button / Remote
2  Photo format       JPEG 2  Connection           Wired, Internet Broadcast
3  Functions             Freeze/ Replay/ Snapshot/ Storage
4  Storage Media      FLASH/ SD

Universal compatible with optical lens
 1  Laparoscope  6  Hysteroscope  11  Choledochoscope  16  Skull-base Endoscope
 2  Thoracoscope  7  Ureteroscope   12  Rectoscope  17  Ventriculoscope
 3  Arthroscope   8  Resectoscope  13  Fiberoptic Bronchoscope  18  Rigid Nasal Endoscope
 4  PELD  9  Percutaneous Nephroscope  14  Ductoscope  19  Bronchial Intubation Endoscope
 5  Discectomy Endoscope  10 Cystoscope  15  E-ENT Endoscope  20  Epiduroscope
