Compact extra-thin and portable
Safer to replace UV
Easy for gel cutting: NO need to wear amber glasses
NO DNA damage inherent to UV
Uniform blue LED trans-illumination low noise
Optimized for use with diverse safe dyes to replace toxic EtBr
Angle adjustable filter/lid can be tilted optionally with one hand easy for observing and cutting gels.
2022 New Lab Gel Electrophoresis 470nm Safe Blue Light Transilluminator
CHL-BV20
iClear BV20 LED-Transilluminator uses a super high intensity LED light plate which can illuminate a range of dyes including GelRed, GelGreen, SYBRSafe, EtBr, and the new UltraPower DNA safe dye. It provides a uniform and bright excitation across gels up to 13 x 17cm.

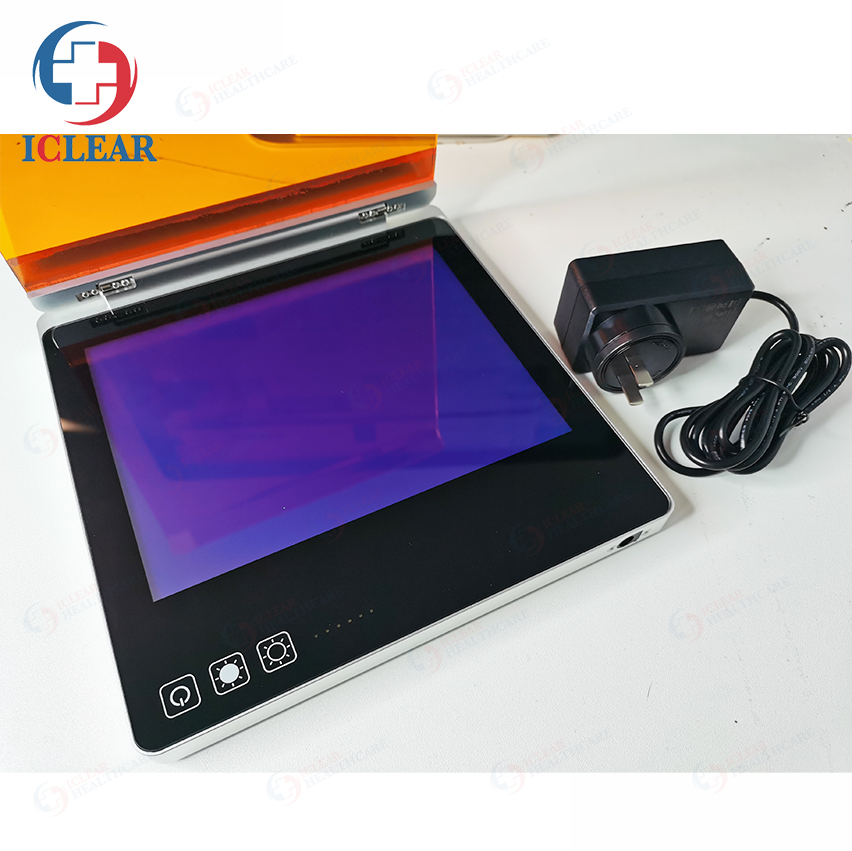

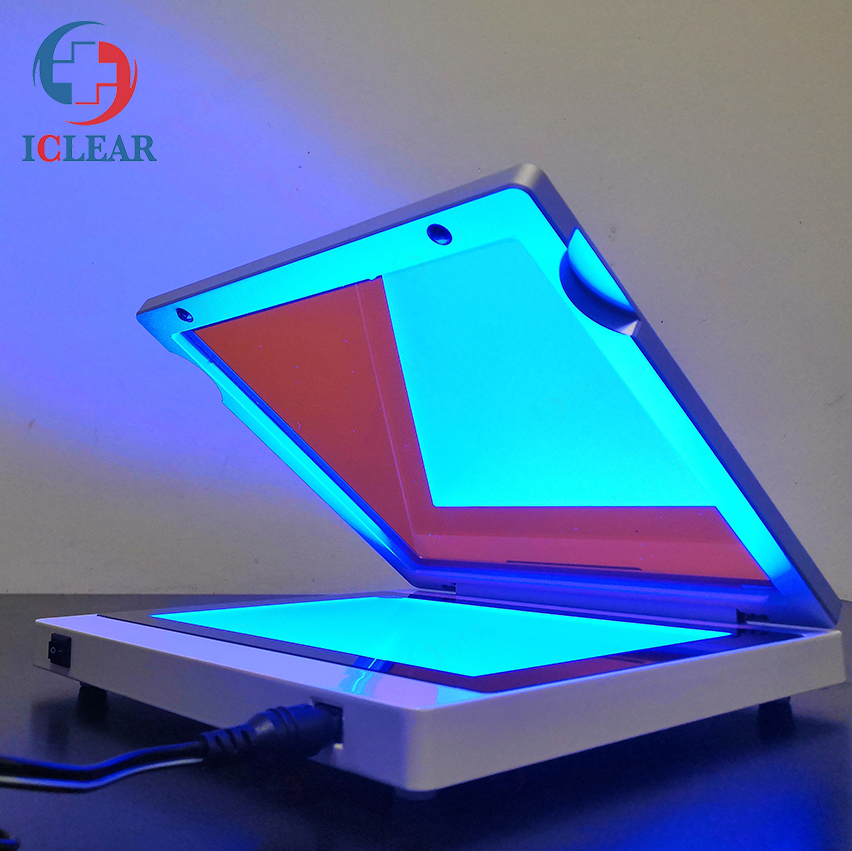

The unit is utter compact and extra-thin and has an LED plate that illuminates samples from the bottom up, causing LED trans-illumination. A built-in filter/lid provides the optimum viewing conditions and is ideal for band cutting.
BV20 can be used in any iclear darkrooms or as a stand-alone unit. To realize a perfect visual effect, the use of it in concern with iClear Gel Signal™ Green is highly recommended
Features:
Compact, extra-thin and portable
Safer to replace UV
Easy for gel cutting: NO need to wear amber glasses
NO DNA damage inherent to UV
Uniform blue LED trans-illumination, low noise
Optimized for use with diverse safe dyes to replace toxic EtBr

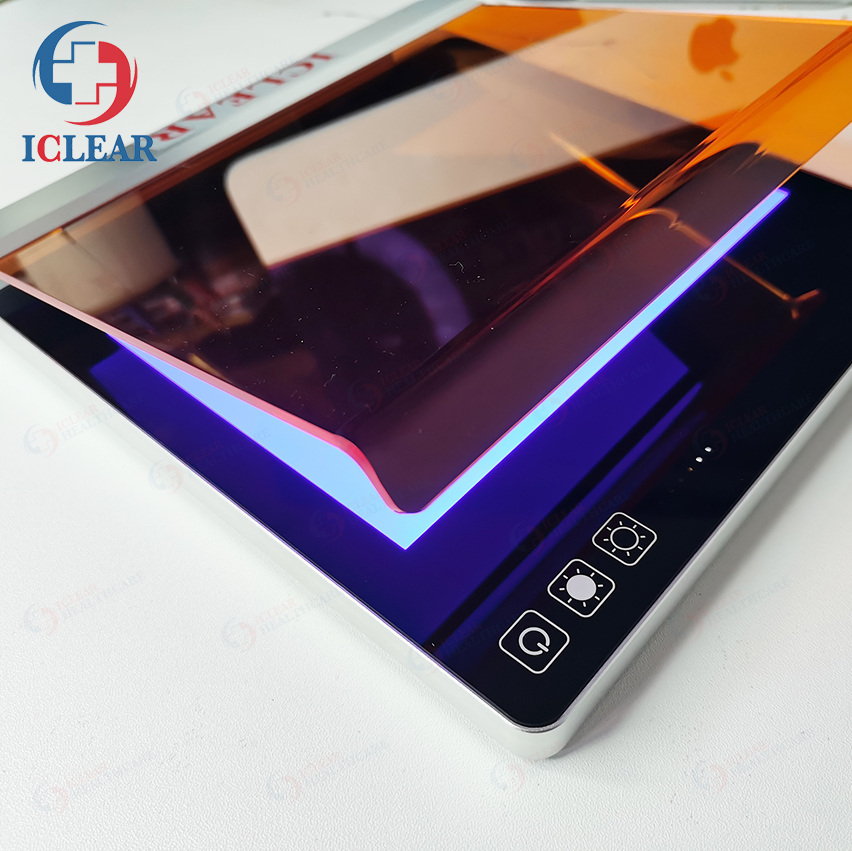

An angle-adjustable filter/lid can be tilted optionally with one hand, easy for observing and cutting gels.
In comparison with UV trans-illuminator:
LED Blue light source, Does not cause burn to your skin and eyes
Uniform trans-illumination module, symmetrical observation of samples
Imported LED with long life and high energy conservation
Specifications:
Instrument dimensions (mm): 210D x 210W x 28H
Viewing surface dimensions (mm): 130D x 170W
LED Wavelength (nm): 470
Lid/ FILTER:amber
Sensitivity: up to 0.1 ng
Uniformity: < 5% CV (coefficient of variance)
LED life: 100,000 hours
