PRODUCT DETAILS
One Key Operation Integrated Automatic Mini Chemiluminescence Imaging System
Band nameICLEAR
Model No.CHL-S6
CertificateISO CE
Add to Favorites
Quick Details
One-key operation, automatic retractable sample stage, to ensure the airtightness of the darkroom environment of the chassis
Small size, built-in touch screen, no need to connect additional computer
16-bit scientific research-grade high-sensitivity digital camera with pixel binning function and a variety of color casings to choose from
Packaging & Delivery
286*355*321mm 12kg
Product Description

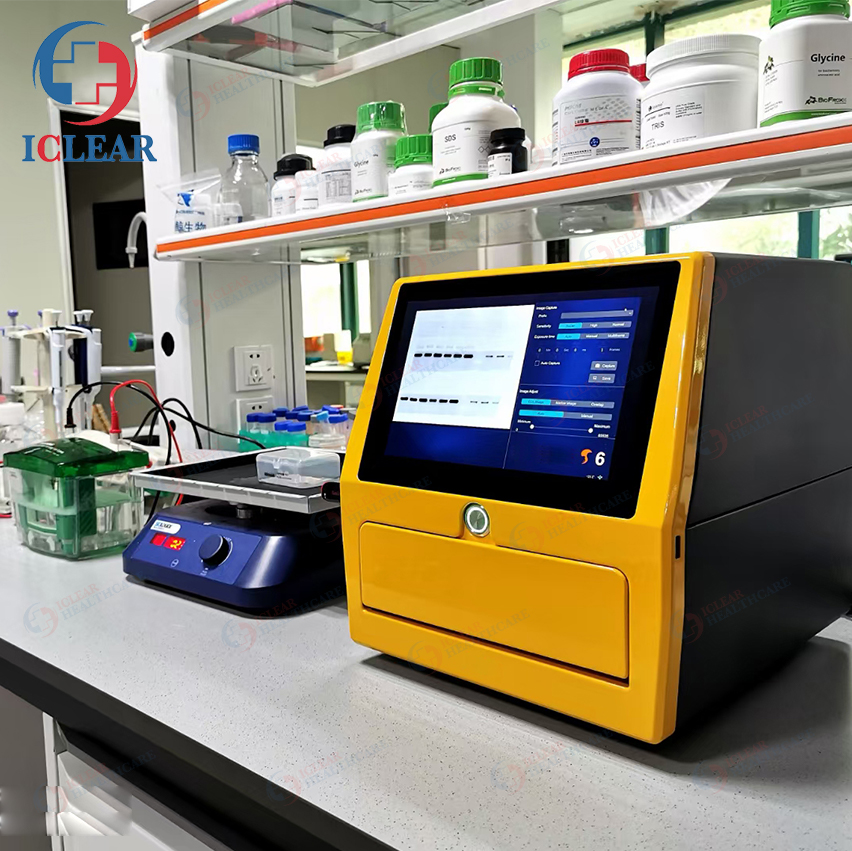

One Key Operation Integrated Automatic Mini Chemiluminescence Imaging System
CHL-S6
Features
No need for any focusing operation, one click to obtain ideal experimental results
In addition to automatic exposure and manual exposure, there are also multi-frame shooting modes, including custom time shooting, grayscale accumulation shooting, time accumulation shooting, etc., to meet your diverse experimental needs
With two USB3.0 interfaces, it can expand the functions of WIFI data transmission, mouse or printer, etc.
One-key operation, automatic retractable sample stage, to ensure the airtightness of the darkroom environment of the chassis

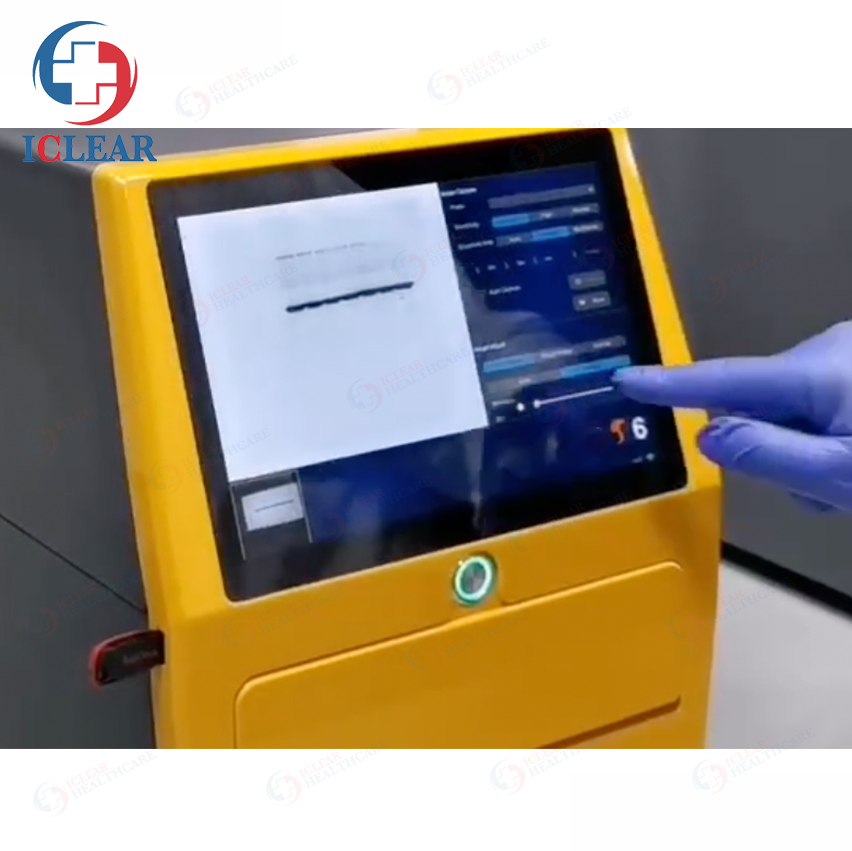

Small size, built-in touch screen, no need to connect additional computer
16-bit scientific-grade high-sensitivity cooled CCD camera with pixel binning
There are more color shells to choose from
Features of Grayscale Analysis Software
Image rotation/lane recognition/band recognition/grayscale curve/background subtraction/data output
Parameters
|
Model |
S6 |
|
Shooting |
116*95mm |
|
area |
16-bit cooled CCD camera |
|
Camera |
Fixed focus; F0.95 |
|
L ens |
6.0 megapixel (2688*2200) |
|
Pixels |
1*1, 2*2, 3*3 and 4*4 optional |
|
Pixel binning |
10. 1-inch touch screen; max resolution: 1920* 1200 |
|
Tablet computer |
Power-driven |
|
Sample tray |
White light |
|
Brightfield lightening |
Manual exposure, auto exposure and multi-frame shooting are optional; bright field |
|
Software |
image and chemiluminescence image automatically superimposed |
|
Data interface |
USB3.0*2 |
|
Power input |
100~240VAC, 50~60Hz |
|
Dimension (W*D*H) |
286*355*321mm |
|
Net weight |
13 kg |
Scope of application
Blot membrane:
Blotting membranes related to Southern, Northern, WB and other experiments.
