PRODUCT DETAILS

China Integrated Dry Eye Diagnosis System Dry Eye Analyzer

Band nameICLEAR

Model No.CHE-DEA100

CertificateISO

Add to Favorites

Quick Details

Image Resolution 8,000,000 pixels

Image Dimensions 3864 x 2218 pixels JPEG

Acquisition Mode Multi-shot photos, video

Focus and Exposure Manual and automatic

Covering Area Maximum 8 mm

Packaging & Delivery

10kg

Product Description

China Integrated Dry Eye Diagnosis System Dry Eye Analyzer
CHE-DEA100

Overview

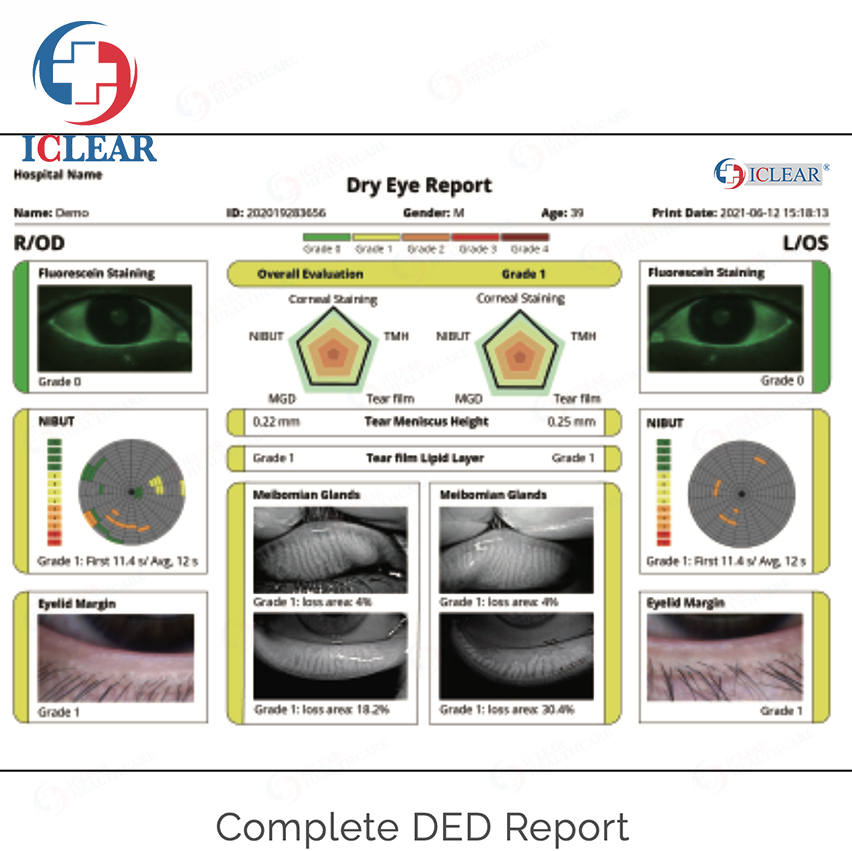

A dedicated platform for dry eye diagnosis provides complete dry eye tests according to the recommendation of the TFOS DEWS II report
8 mp high-resolution camera and outstanding optical design bring a high level of detail and clarity

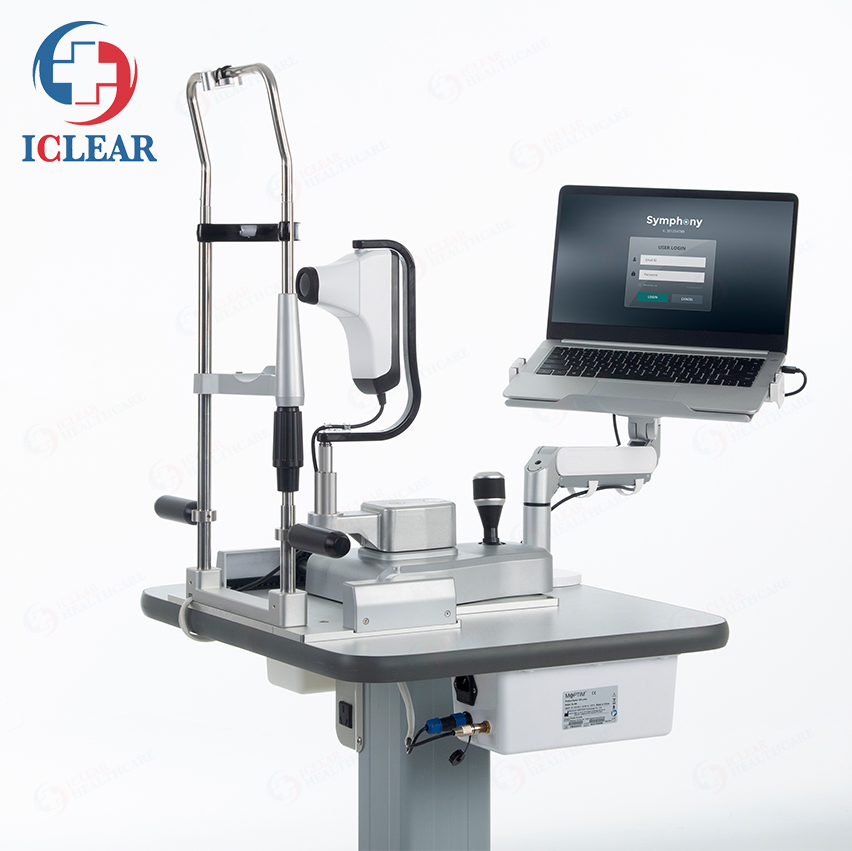

Can be mounted on the majority of slit lamps, easy to be integrated into any practice seamlessly
Step-by-step instruction for a dry eye exam
Possible to create a custom protocol

Features
Meibography
Evaluate the meibomian glands with infrared light, the software provides an automatic evaluation of loss area.

Non-invasive breakup time
Automatically analyze break-up area, first and average break-up time for tear stability evaluation.

Interferometry
Record a video of the blinking process to observe the surface reflection pattern and dynamics of the tear film.

Tear meniscus height
Evaluate the tear meniscus height that is observed on the eyelid margins. Up to 5 measurement points can be taken.

Fluorescein Staining
Evaluate the areas of damage on the ocular surface after application of the fluorescein dye. Compare your images with grading scales incorporated in the software.

Redness
Eye redness could be one of the symptoms of dry eye disease. Compare your images with grading scales incorporated in the software.

Blepharitis
MGD can cause the glands to become blocked, impacted, and infected. Capture high resolution under white LED illumination, and compare your images with grading scales included in the software.

IMAGE AND VIDEO ACQUISITION
Image Resolution	8,000,000 pixels
Image Dimensions	3864 x 2218 pixels JPEG
Acquisition Mode	Multi-shot photos, video
Focus and Exposure	Manual and automatic
Covering Area	Maximum 8 mm
Camera	Colored, sensitive to infrared
Light Source	Infrared LED, Blue and white LED
GENERAL INFORMATION
Working Distance	3mm-50mm
Ports	USB 3.0
Power Supply	5V
Dimension	170mm (H)x 54mm (W) x x 64~110mm (L)
Weight	427g (including main body, 4 lenses and 1 wireless camera shutter)
Accessories	Standard: wireless camera shutter, lenses, briefcase, desktop lens case, slit lamp
Accessories	adapters; optional:complete holder,instrument table
SOF TWARE AND DATA MANAGEMENT
Operating System	Windows 10 64 bit
System Requirement	Intel core i3, RAM 8GB, hard disk 200G, screen resolution: 1920*1080
Exams	Fluorescein staining, NIBUT, FBUT, interferometry, meibography, tear meniscus height, redness, eyelid margin
