PRODUCT DETAILS

Band nameICLEAR

Model No.CHL-86V series

CertificateIOS CE

Add to Favorites

Quick Details

Accurate temperature controller, setting temperature range is -40 ~ -86C, accuracy is 0.1 oC.

Suggested ambient temperature: + 10~32C.

Insulated inner door to ensure good temperature uniformity.

304 SS inner chamber and round corner for friendly using and easy cleaning.

Wide available voltage range: 187V~242V.

915×928×1818mm 220KG

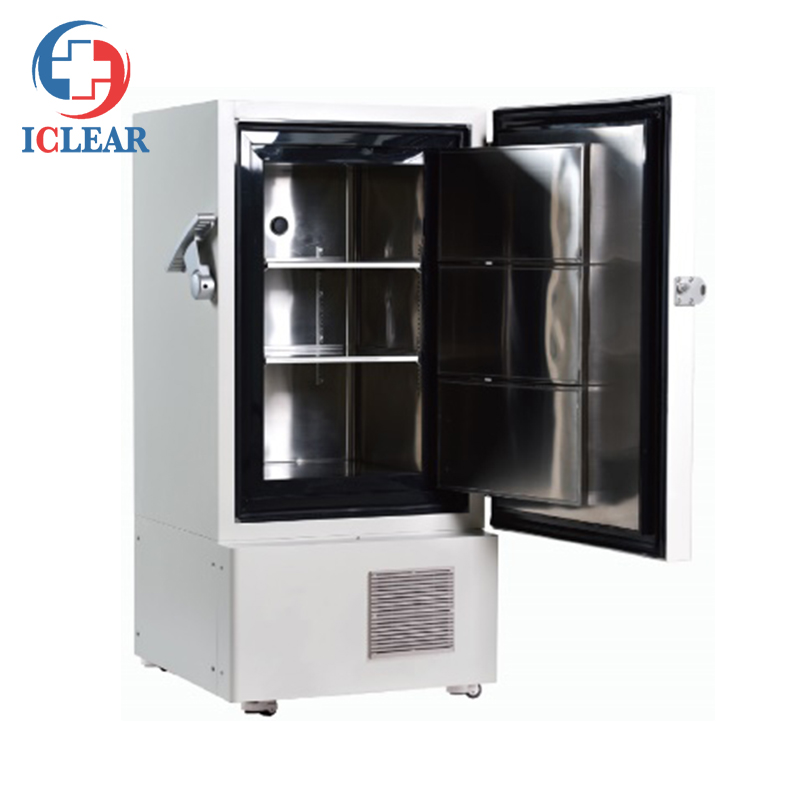

-86°C ULT low-Temperature Freezer (Self-cascade Cooling System)

Model: CHL-86V58,188E,340E,408E,588E,728E,838E

Specifications

Model No.	CHL-86V58	CHL-86V188E	CHL-86V340E	CHL-86V936
Temperature Range	-40 ~ -86°C
Ambient Temperature	+10~32°C
Controller	Microprocessor
Display	Digital
Noise	49.5 dB	52 dB	52 dB	53 dB
Electrical Data
Power Supply	220V/50Hz
Rated Power	450 W	660 W	810 W	1600 W
Electrical Current	3.1 A	4.3 A	5 A	7.8 A
Power Consumption	6.5 kWh/24h	8.2 kWh/24h	11.2 kWh/24h	14.5 kWh/24h
Refrigeration System
Compressor	SECOP * 1			SECOP * 2
Refrigerant	Mixed Gas (Patented Technology)
Cooling Type	Direct cooling
Defrost Type	Manual
Alarm
High/Low Temperature	Y	Y
High Ambient	/	Y
High/Low Voltage	/	Y
Sensor Error	Y	Y
Condenser Error	/	Y
Door Ajar	/	Y
Low Battery	/	Y
Filter Clean	/	Y
Capacity	58 L	188 L	340 L	936 L
Accessories
Caster with Stopper	4
Inner Door (Foamed)	1	3	2
Shelf (304 SS)	1	2	3
Test Hole	/	25mm * 1		18mm * 1
USB Port	/	1
