| Specification | |
| Imaging technology | LED true color |
| Light source | LED white light |
| Capture modes | Single capture,,automatic mosaic |
| Imaging modes | Color image |
| Field of view (From the center of the eyeball) |
Wide field 176° (tolerance±5%) Ultra wide field 220°(two images) Multi mosaic is la rger than 260° |
| Resolution (optical) | 8μm(tolerance ±7%) |
| Soft exposure technology | Reduce pupil shrinkage after exposure, reduce patient discomfort, and better adapt to children and special patients |
| Working distance | 10mm±2mm |
| Camera flash light source illumination | The maximum illumination is less than 130000lx |

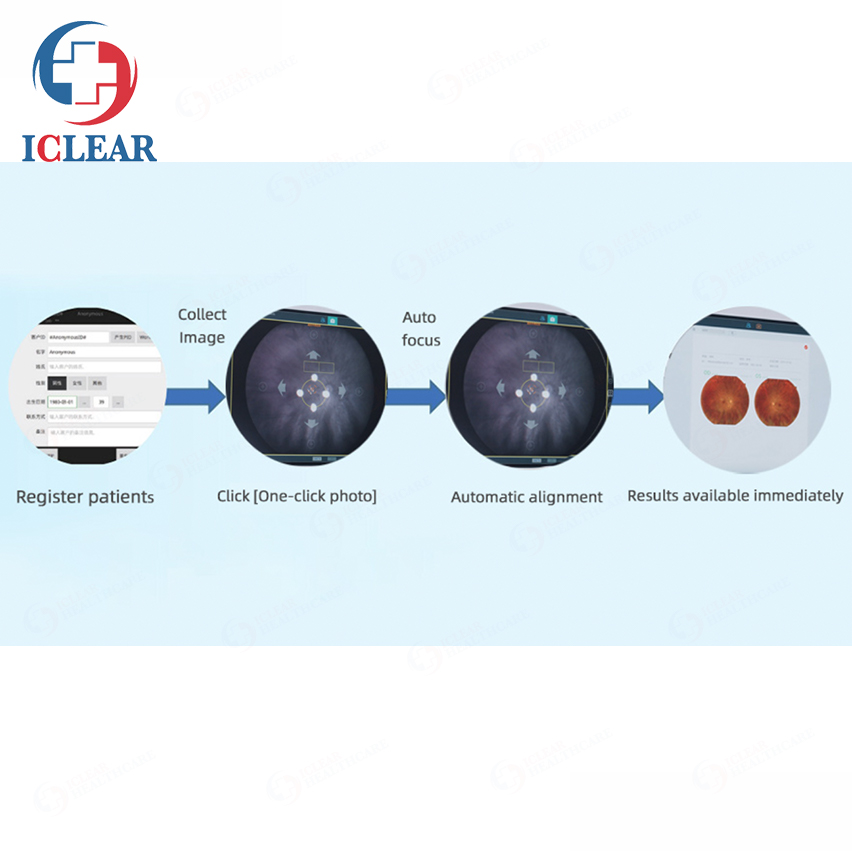

| Automatic operation | Automatic focus, Automatic alignment, Automatic capture, Automatic gain/manual |
| Al intelligent system | Accelerate precise positioning of the fundus, improve focusing speed and accuracy, and reduce examination time |
| Capture speed | 16 frames/second; image capture 60ms |
| Display screen | High-definition display, 27-inch color monitor (resolution 2560*1440P) |
| Power supply | Voltage 220v power 200W |
